Data center sensing

Data Center Server Board Sensors

Board-level pressure, temperature, humidity and air-quality sensors for motherboards, GPU modules, power supplies, network switches and BMC applications.

Why it matters

Thermal management starts on the board.

GPUs, CPUs, VRMs and power supplies run close to their limits, and fan and pump control is only as good as the readings behind it. Board-level sensors let OEMs ramp cooling, throttle safely and flag condensation before it reaches the silicon.

What we monitor

CPU, GPU, VRM and PSU temperature
Chassis airflow ΔP for fan curves and blocked-intake alarms
Board-level humidity and condensation

What we measure

Sensor coverage for server board-level

Explore sensor technologies mapped to Motherboards · GPU Modules · PSUs · Network Switches · NVLink · BMC. Product application notes below identify where each sensor fits within this data center sub-system.

Available technologies

Sensors for Server Board-Level

11 products · 3 categories

Not sure what you need? Tell us about your server board-level application and our team will recommend the right sensors.

i2s

Quick-disconnect coolant pressure sensor with I²C output for rack and blade level

Applications

Liquid-assisted server trays — board-level I²C coolant pressure

Ranges: 0–7 bar up to 0–20 bar (35 bar overpressure)
Accuracy: ±0.5% FS (0–85 °C)
Output: I²C · 2.7–5.5 VDC
Connection: MQD-02 dry connect/disconnect · 4-pin JST

NovaSensor

SMT MEMS + ASIC in miniature housing

Applications

Server PSU and liquid-assisted card board-mount pressure (SMT MEMS+ASIC on CDU controller PCBs)

Range: 2" H₂O to 30 PSI (A/D/G)
Output: Analog + I²C / SPI / SENT
Package: SOIC-14 SMT T&R

Custom variant

SMT tape-and-reel with customer-logo marking for OEM PCB integration; digital (I²C/SPI/SENT) and analog variants share pinout; barometric-only NPA-700 range for altitude compensation.

NovaSensor

Board-mount piezoresistive ΔP

Applications

Server chassis airflow ΔP for fan-speed control and filter alarms

Ranges: 10" H₂O – 100 psi (G/D/A)
Output: 50–150 mV piezoresistive
Linearity: ±0.1% FSO (±0.25% on 5 psi)

All Sensors

Leadless dual-die digital ΔP

Applications

Server-chassis airflow ΔP for fan-curve control and blocked-intake alarms

Type: Leadless dual-die CoBeam2™
Range: ±0.5 to ±60 inH₂O (G/D)
Output: Digital I²C & SPI

All Sensors

Ultra-low-pressure CoBeam2™

Applications

Server board-level absolute or gauge pressure (1–50 psi) on PSUs and liquid-assisted cards

Type: Ultra-low-ΔP CoBeam2™
Range: 0.5–30 inH₂O · 1–150 psi
Output: I²C · SPI · analog

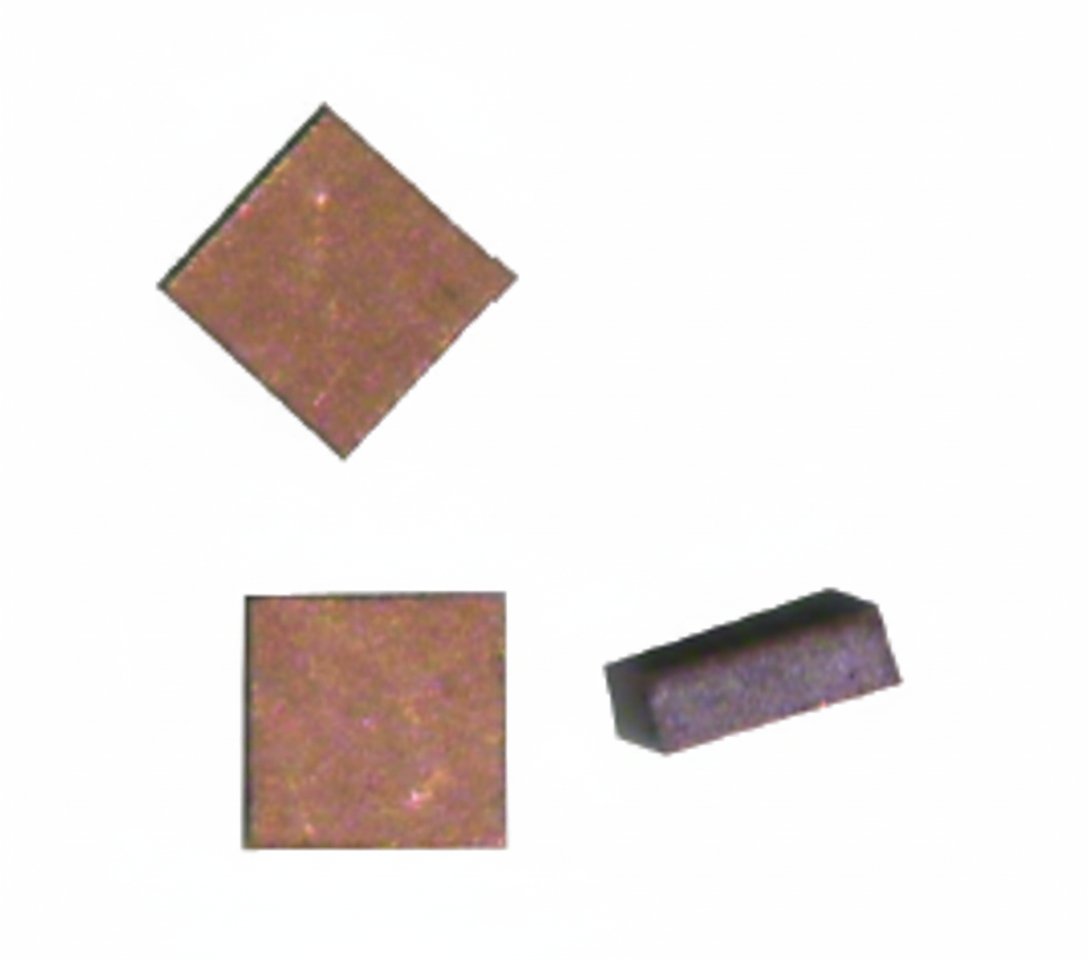

Thermometrics

Type HM / NDU leadless NTC

Applications

CPU / GPU / VRM / PSU / switch-ASIC temperature sensing on server PCBs (SMT reflow)

Family: SMD / HM Leadless / Type FL (FFC)
R25 values: 2.2 kΩ – 100 kΩ
Qualification: AEC-Q200; RoHS

Custom variant

Type HM for standard board-mount SMT; Type NDU for leadless tight-pitch placement on high-density AI / accelerator boards. Conformal-coated variants for server rooms with elevated humidity.

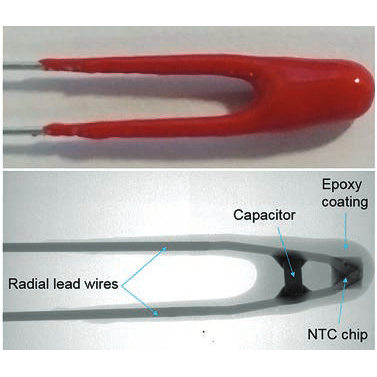

Thermometrics

Resin-coated NTC with RF decoupling

Applications

CPU / GPU board temperature in EMI-heavy environments (eliminates shielded-cable runs)

Feature: Integrated RF decoupling — EMI-immune
Range: Up to +155 °C (epoxy)
Compliance: GMW3097 / ISO 11452

Telaire

OEM board-level T+RH

Applications

Server / switch chassis intake air T+RH on the SBC of integrated environmental monitors

RH accuracy: ±2.0% RH (20–80%)
Temp accuracy: ±0.5 °C (14-bit)
Output: I²C or PDM

Telaire

Capacitive RH + T with integrated ASIC

Applications

Board-level RH + condensation detection on server / switch motherboards (sub-0.5% drift / yr)

Type: Capacitive RH+T, LCC SMD
RH accuracy: ±2.0% RH (20–80%)
Temp accuracy: ±0.3 °C

Telaire

HS20 / HS12SP / HS30P family

Applications

Board-level humidity monitoring on server / switch PCBs (bare HS20)

Type: Bulk-resistance RH (thin-film polymer)
Variants: HS20 / HS12SP / HS30P
Drive: Low-V AC, 50 Hz – 1 kHz

Telaire

SIP through-hole T+RH module

Applications

Server / switch chassis SBC T+RH using SIP socket-mount for field replacement

RH accuracy: ±2.0% RH (20–80%)
Output: I²C or PDM
Package: 4-pin SIP through-hole
