Why it matters

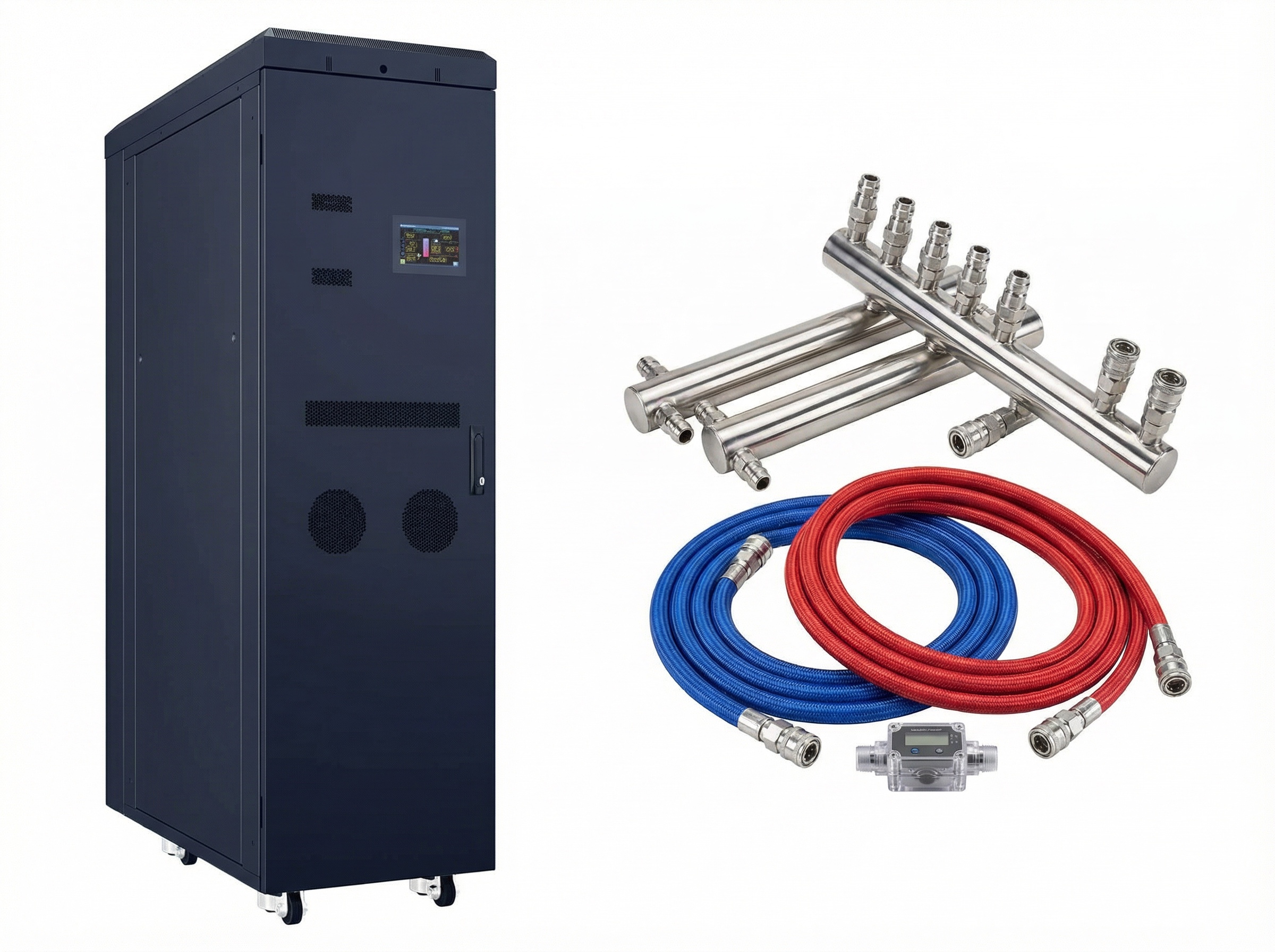

AI racks have outgrown air.
GPU racks now draw more power than air can remove, so heat is carried away by liquid — through CDUs, manifolds and cold plates sitting millimetres from the chips. That brings coolant into the white space. A blocked cold plate, a failing pump or a slow drip can take compute offline fast, so every loop needs to be watched.
See the full Liquid Cooling page →Sub-systemLiquid Cooling
Measurand
35 of 35
Not sure what you need? Tell us about your liquid cooling application and our team will recommend the right sensors.

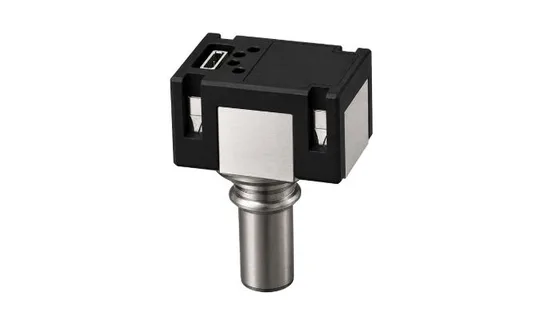

i2s
Quick-disconnect coolant pressure sensor with I²C output for rack and blade level
Applications
- Detection of leaks, blockages and flow interruptions in liquid-cooling loops at rack and blade level
- Tool-free installation and service via dry connect/disconnect port
- Ranges
- 0–7 bar up to 0–20 bar (35 bar overpressure)
- Accuracy
- ±0.5% FS (0–85 °C)
- Output
- I²C · 2.7–5.5 VDC
- Connection
- MQD-02 dry connect/disconnect · 4-pin JST

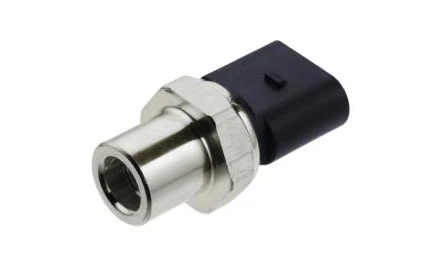

i2s
Stainless-steel coolant pressure sensor for rack inlet/outlet monitoring
Applications
- CDU and rack-manifold coolant pressure at rack inlet and outlet to assess cooling performance and protect server blades
- Ranges
- 0–7 bar up to 0–20 bar
- Accuracy
- ±1% FS (10–80 °C)
- Output
- 10–90% Vs ratiometric · 5 V supply
- Connection
- UNF 7/16"–20, HEX 24 · 3-pin plug
Telaire
Wet/wet differential pressure transmitter
Applications
- CDU loop ΔP across cold plates (flow-blockage detection)
- Pump ΔP for wear and cavitation trending
- Strainer / coolant-filter ΔP monitoring
- Type
- Wet/wet differential
- Media
- Glycol, water, oil (316 SS wetted)
- Output
- 4–20 mA
Custom variant
Glycol-compatible wetted materials (EPDM seals) as standard; optional NPT and G-thread process connections; extended-range version to 300 psid for primary-loop headers.
NovaSensor

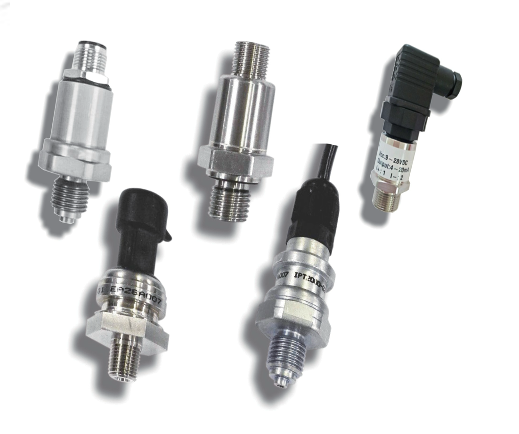

NovaSensor NPI/IPT Harsh-Media Family
Applications
- CDU coolant-loop pressure (primary and secondary)
- Glycol fill / leak-down monitoring on closed loops
- Range
- 1 – 15,000 psi
- Output
- 4–20 mA, 0–5/10 V, I²C, SPI
- Accuracy
- ±0.25% FS
NovaSensor

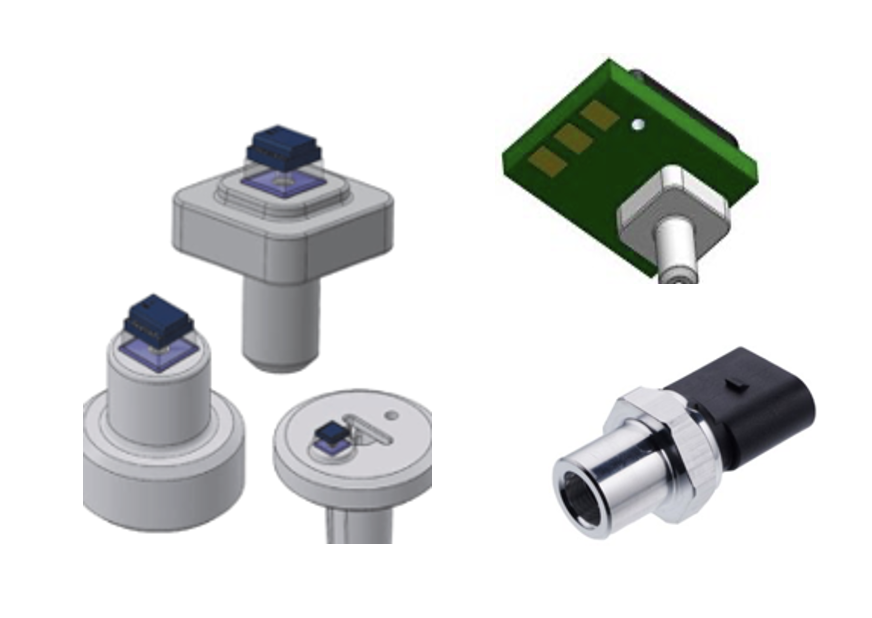

Low-Cost Media-Compatible P+T
Applications
- CDU primary and secondary loop P+T
- Cold-plate inlet/outlet P+T (one device replaces two)
- Chilled-water and immersion-loop P+T
- CDU filter ΔP and pump-health ΔP
- Tech
- PT1907 MEMS die, no oil fill
- Range
- 15 – 600 psi
- Output
- I²C, SPI, 4–20 mA, Analog, SENT
Custom variant
LCMC is a platform, not a single SKU — specify range, interface (I²C / SPI / 4–20 mA / SENT), process connection and cable pigtail per CDU / compressor integration. No oil-fill keeps it glycol- and refrigerant-safe.
NovaSensor
Digital media-isolated pressure
Applications
- High-pressure coolant loops on CDU primary lines and immersion manifolds (digital I²C readout)
- Range
- 2.5 – 300 psi (A/G)
- Linearity
- ±0.25% FSO (BFSL)
- Interface
- I²C 14-bit
Custom variant
Optional Hastelloy C diaphragm for aggressive dielectric coolants and chemistries where 316L is attacked; custom process-port thread patterns on request for OEM CDU integration.

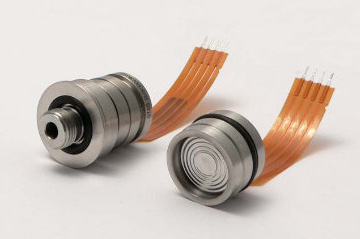

All Sensors
Stainless-steel piezoresistive — high media compatibility
Applications
- CDU primary-loop high-pressure media-compatible monitoring (G 1/8 in or weld-ring port; PG/EG and dielectric coolant compatible)
- Tech
- Piezoresistive (SS 316/316L wetted)
- Range
- 200 mbar – 35 bar (A / G / V)
- Output
- mV (1.5 mA constant-current)
All Sensors

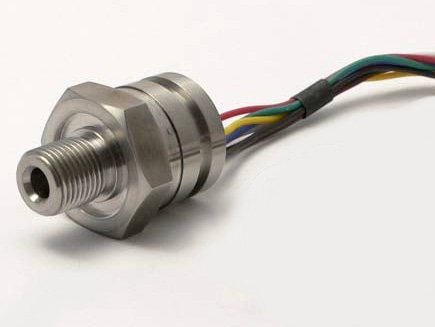

Stainless-steel piezoresistive — analog + I²C
Applications
- CDU pressure monitoring with simultaneous I²C telemetry and analog control-loop output (SS-wetted, 13-bit resolution)
- Tech
- Piezoresistive + ASIC (SS 316/316L)
- Range
- 200 mbar – 35 bar / 3 – 500 psi
- Output
- 0.5–4.5 V ratiometric + I²C
Thermometrics
Waterproof IP68 overmolded NTC
Applications
- Immersion-rated coolant temperature on CDU and chilled-water loops (JIC stainless variant)
- Protection
- IP68 waterproof overmold
- Range
- −50 to +105 °C (+125 °C ≤ 6 h)
- Thermistor
- 10 kΩ NTC
Custom variant
Longer probe lengths (6″ / 12″) for duct insertion; threaded SS housing for pipe immersion; networked multi-probe cable (up to 8 probes / run) for rack-row monitoring.
Thermometrics
Screw-fixed surface NTC
Applications
- Ring-terminal-mount NTC on CDU pump cabinets and busbar lugs — coolant-line surface temperature where direct contact at a screw-terminal is needed
- Operating
- −40 to +125 °C
- R @ 25 °C
- 5K / 10K / 20K / 50K / 100K Ω
- Form factor
- Ring-terminal screw-mount
Thermometrics
Surface-stick NTC (flat / pipe / cable)
Applications
- Stick-on coolant-pipe skin temperature where retrofit on existing CDU lines is needed (no penetration)
- Operating
- −30 to +70 °C
- R @ 25 °C
- 9983 Ω (typ)
- Mounting
- Pressure-sensitive adhesive
Thermometrics
Inline NTC with barb fittings
Applications
- Chilled-water coil inlet/outlet temperature
- CDU coolant-loop inline temperature with barb fittings (no weld-in)
- Operating
- −40 to +120 °C
- R @ 25 °C
- 10 kΩ ±1.5%
- Interface
- SAE J-1231 / Triple-Barb
Thermometrics

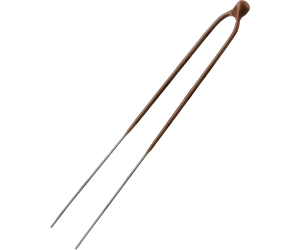

Acid/moisture-resistant coated chip
Applications
- Coolant and immersion-fluid temperature in harsh environments (acid / moisture exposure)
- Direct-immersion temperature in two-phase / dielectric coolants where standard NTC encapsulants degrade
- Operating
- −40 °C to +190 °C
- Compliance
- AEC-Q200 Rev D · RoHS · REACH
- Features
- Shock-resistant · silver-migration resistant
Telaire

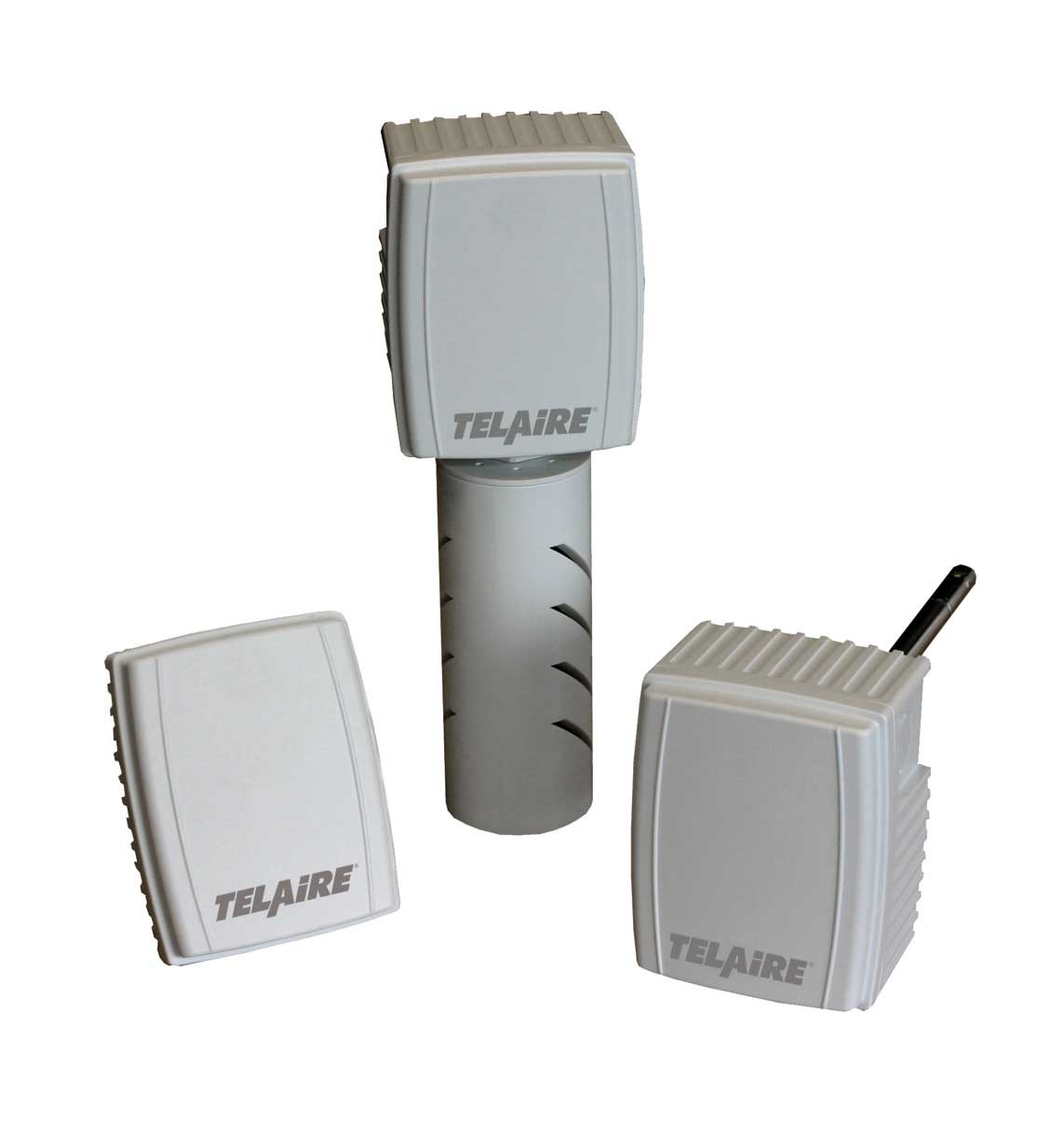

Dew-point / enthalpy / wet-bulb
Applications
- Outdoor CDUs where dew-point / wet-bulb matters for condensation control
- Extended-range ambient monitoring above standard RH/T limits
- Operating env
- −40 to +60 °C, 0–99% RH
- Output
- 4–20 mA, 0–5 V or 0–10 V
- Measurands
- Dew Pt · Enthalpy · Wet Bulb · Dry Bulb
Telaire

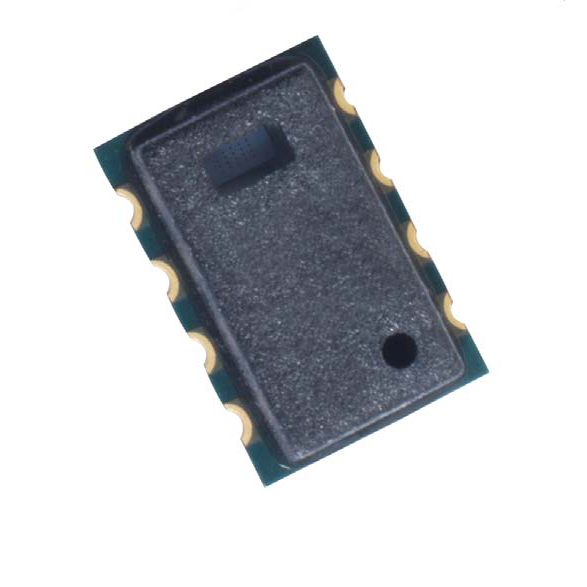

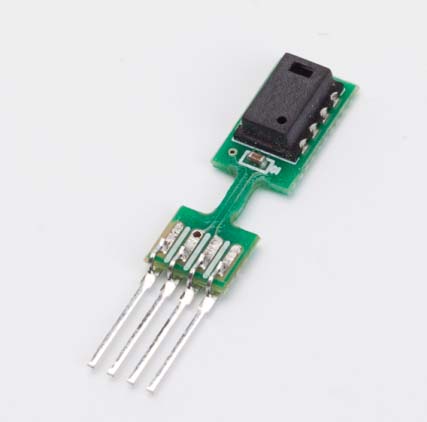

OEM board-level T+RH
Applications
- Liquid-cooled rack environmental monitoring — RH+T inside CDU enclosures and adjacent dry-rack air space for condensation-risk surveillance
- RH accuracy
- ±2.0% RH (20–80%)
- Temp accuracy
- ±0.5 °C (14-bit)
- Output
- I²C or PDM
Amphenol
Epoxy-hardened waterproof transmitter
Applications
- CDU condensation-risk monitoring at equipment drip points
- RH accuracy
- ±2% RH (30–95%) @ 25 °C
- Feature
- Withstands 100% saturation
- Output
- 4–20 mA, 0–5 V or 0–10 V

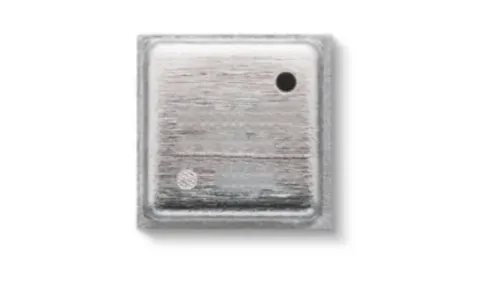

SGX Sensortech
3 × 3 mm digital gas sensor that detects propylene-glycol (PG25) vapor from coolant microleaks
Applications
- Glycol (PG25) vapor detection for coolant microleaks at CDU drip pans and inside cooling blades near quick-disconnects
- Works alongside liquid leak detection: one firmware setting flags sudden sprays (relative output) and slow leaks (absolute trend)
- Type
- Metal-oxide gas sensor · embedded AI algorithms
- Package
- 3.0 × 3.0 × 0.9 mm IP67 (0.7 mm standard) · 12-LGA
- Interface
- I²C · 1.7–3.6 V · down to 200 µW
- Operating
- −40 to +85 °C · 10-year lifetime

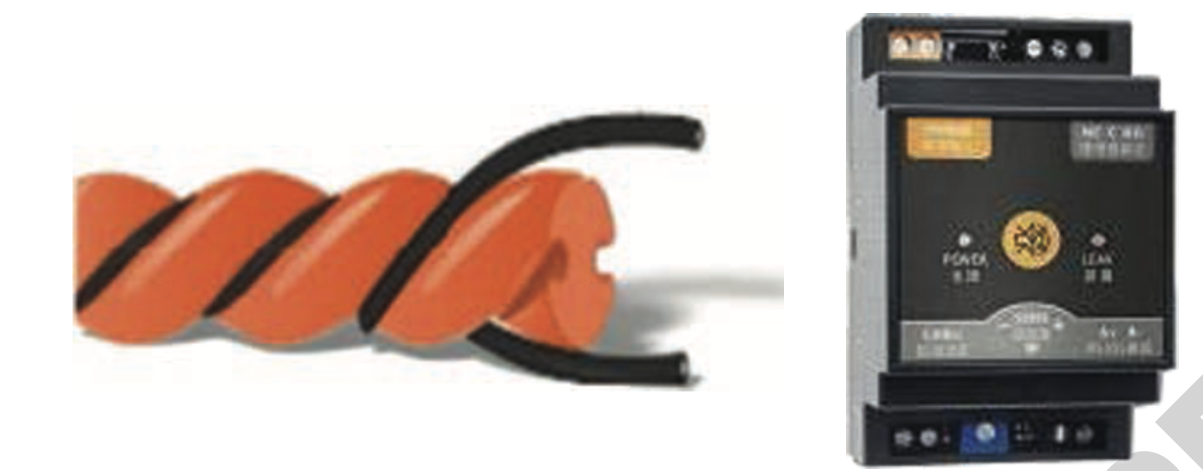

Thermometrics
LET-Basic / LET-Plus / LET-Elite alarm modules with sense cable
Applications
- CDU under-rack leak loops; primary/secondary loop leak containment
- Type
- Rope-style sense cable + alarm module
- Cable length
- Up to 500 m (Basic, Plus) · up to 1,500 m locating (Elite)
- Interface
- RS485 Modbus RTU · BACnet IP / Modbus TCP support · relay outputs
Thermometrics
Point/spot water-detection sensor
Applications
- CDU and primary-loop drip-tray water detection — dry-contact alarm back to leak-monitor or BMS
- Sensing R
- 510 kΩ ±3% (1/4 W)
- Supply
- 5 VDC recommended
- Operating
- −40 to +85 °C
Rochester
Capacitive liquid-level transmitter (with TLL head)
Applications
- CDU reservoir level (non-conductive coolants)
- Probes
- 500 / 1000 mm; field-cut to length
- Liquids
- Diesel, kerosene, non-conductive fluids
- Supply
- 9–36 VDC (80 V OVP, reverse-polarity)
- Output
- Resistive / 0–5 V / 4–20 mA (TLL head)
- Accuracy
- ±1% FS
- Cert.
- CE, RoHS; IP65 head
Rochester
Top-mount magnetic dial level gauge (mechanical)
Applications
- CDU glycol reservoir local readout
- Type
- Top-mount 5-bolt magnetic level gauge
- Accuracy
- ±6 % (6700 base), ±7 % (Adjustable)
- Variants
- 6741 / 6781 + TwinSite® sender
Rochester
Cellular radar tank monitor (remote telemetry)
Applications
- CDU reservoir / coolant tank fill-level tracking on remote / edge sites — cellular reporting without a DCIM integration
- Sensing
- Radar — non-invasive tank level
- Network
- CAT-M1 / NB-IoT cellular (FCC)
- Battery life
- Up to 10 years (ATEX logger)
- Certifications
- ATEX / IS; UL 913 Class I Div 1, Zone 0
Rochester
Guided-wave radar level transmitter
Applications
- Large-reservoir CDU / thermal-storage tank level where foam or vapor defeats ultrasonic
- Sensing
- Guided wave radar (TDR); no moving parts
- Range
- Up to 3 m; <2 mm resolution
- Output
- 0.5–4.5 V / 4–20 mA options
- Sealing
- IP6K9K
Rochester
Custom float and leak switches (point level)
Applications
- CDU reservoir hi/lo float alarm
- Point leak-switch under manifolds and CDUs
- Type
- Custom-engineered float & leak switches
- Capabilities
- Multi-level, side-mount, continuous, P+T combos
- Mfg.
- IATF 16949 — Coppell, TX
Custom variant
Built-to-order: specify stem length, float material, switch action (N.O./N.C.), process fitting, cable and connector. Rochester Quick-Turn (Coppell, TX) builds from the 9871 / 9872 / 9873 / 9875 families — IATF 16949 North-American manufacturing, OEM-volume capable.
SSI
Non-contact ultrasonic level
Applications
- Non-contact level in CDU reservoirs where immersion probes are unwanted
- Max depth
- 32" diesel / 24" gasoline
- Accuracy
- ±0.125"
- Outputs
- 3-wire resistive · voltage · DFT-110
SSI
T + Ultrasonic + Level + Concentration
Applications
- CDU glycol concentration monitoring — one device reports level, temperature and glycol concentration over a single interface
- Concentration
- 0–50%, ±3%, 0.25% res.
- Level
- 20–850 mm, ±3 mm
- Comm
- J1939 CAN
Wilcoxon
High-MTBF industrial accelerometer
Applications
- CDU pump-bearing vibration monitoring — early detection of impeller imbalance, cavitation and bearing wear before coolant-flow loss reaches the racks
- Sensitivity
- 100 mV/g ±5%
- Response
- 0.5 – 14,000 Hz
- Max temp
- 120 °C
- Compliance
- API 670; CSA / ATEX / IECEx variants

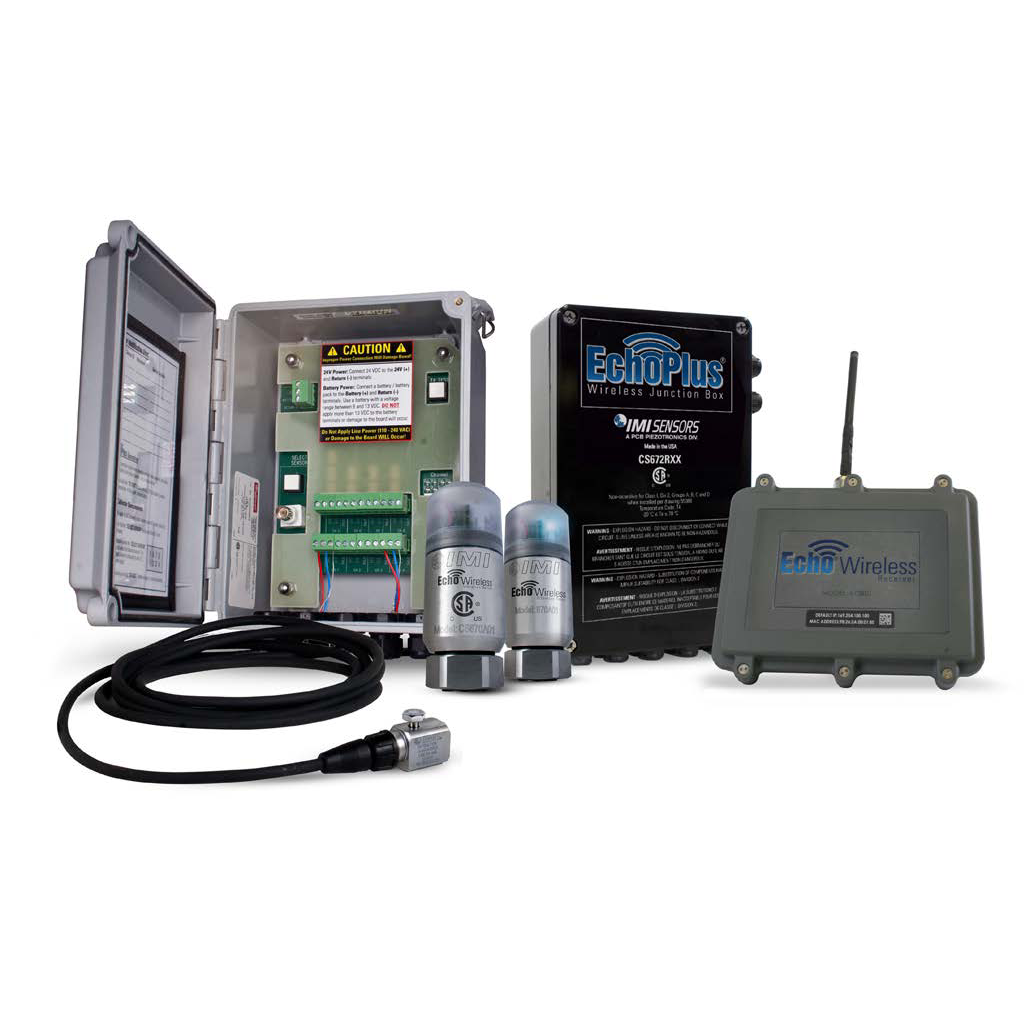

IMI
Echo® sensor + EchoPlus® wireless
Applications
- CDU-pump vibration trending without running conduit to the pump skid
- System
- Wireless sensor + EchoPlus® JB + Receiver
- Measures
- Peak/RMS vel, accel, crest factor
- Integration
- Modbus®
Piher
Flange-mount gear-tooth speed sensor
Applications
- CDU-pump RPM feedback for closed-loop flow control
- Supply
- 4–24 VDC (two-wire)
- Max speed
- 12 kHz fwd / 40 kHz (A/B)
- Operating
- −40 to +125 °C
Piher
Open-loop Hall-effect current sensor
Applications
- Open-loop current sensing on CDU pump and heater circuits (wire-through)
- Range
- ±25 A – ±1,000 A
- Output
- Ratiometric 0.5 – 4.5 V
- IP
- IP67 / IP69K
Custom variant
Split-core (clamp-on) retrofit variant for installation on live feeders without disconnecting wires; custom window geometry for non-standard busbar sections on request.
Piher
Non-contact Hall-effect rotary
Applications
- CDU valve-position feedback on motorized ball valves (non-contact, 50 M-cycle life)
- Linearity
- ±1% (±0.5% on request)
- Range
- Programmable 50°–360°
- Supply
- 5 V ±10% or 7–32 V
Thermometrics
Non-invasive pipe-skin NTC clips
Applications
- Non-invasive coolant-pipe temperature on CDU primary and secondary loops (no break-in retrofit)
- Chilled-water plant pipe-skin temperature trending across multiple pipe diameters
- Drop-in retrofit on existing whitewater and TCS lines without draining the loop
- Pipe OD range
- 8 – 54 mm (multiple clip sizes)
- Range
- −40 to +150 °C
- Mount
- Spring-clip, no break-in
Custom variant
Family covers OD 12.7 / 18 / 22 / 28 / 35 / 42 / 54 mm with single connector standard (M12 A-coded). Thermally-conductive non-marring TPE pad compatible with PG/EG and dielectric coolants.
Telaire
SIP through-hole T+RH module
Applications
- SIP through-hole T+RH integrated on CDU control PCBs and BMS boards for board-level condensation prevention
- RH accuracy
- ±2.0% RH (20–80%)
- Output
- I²C or PDM
- Package
- 4-pin SIP through-hole
Thermometrics

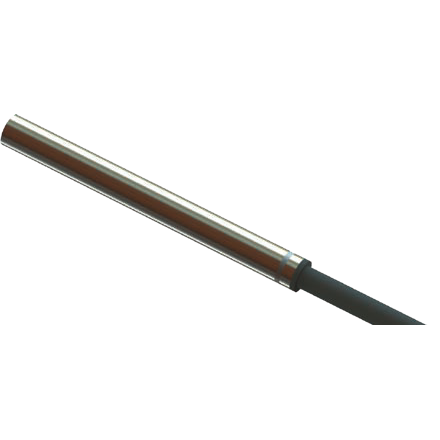

NTC probe — water-ingression resistant
Applications
- Outdoor CDU coolant lines exposed to weather, coastal / humid sites (UV + chloride + sulfate resistant per HACT testing)
- Type
- NTC thermistor probe; HACT-tested
- Resistance
- Standard NTC curves (5K / 10K / 50K Ω)
- Range
- −40 to +150 °C
Thermometrics
Coolant immersion probe — brass housing
Applications
- CDU coolant immersion temperature on water / glycol loops — brass-housing thread-in alternative to clip-on surface sensors when an immersion probe is preferred
- Type
- NTC immersion probe (brass)
- Resistance @ 25 °C
- 2129 Ω ± 4.87%
- Range
- −30 to +150 °C
The takeaway
From MEMS on the PCB to transducers on the pipe.
Purpose-mapped across CRAC/CRAH, CDU & immersion, PDU/UPS, rack infrastructure, server boards, standby generators and BESS — so the same supplier covers the entire data-center thermal, power and safety envelope.
Custom Variant options are available on many products: extended ranges, alternate housings, split-core retrofits, and certified industrial housings packaged around Amphenol sensing elements.
Disclaimer: All product specifications and descriptions are subject to change without notice. The information on this page is for general guidance only and does not constitute a warranty of any kind. To confirm current specifications and product suitability for your application, please contact Amphenol Sensors directly.
